R120 -R120PC Modular Stem

R120™

Series




The R120™ and R120PC™ are modular stems with a patented star-shaped

mechanism that is designed to give the surgeon a greater ability to adjust offset,

anteversion and leg length. This allows greater accuracy in correcting

biomechanical alignment to ensure minimal joint  reaction force and correct stress

transfer.The R120 series gives the surgeon intraoperative versatility by offering

cemented and cementless options in one instrument system. This implant

configuration is proven successful through 20 years of clinical data



R120 Features and Benefits

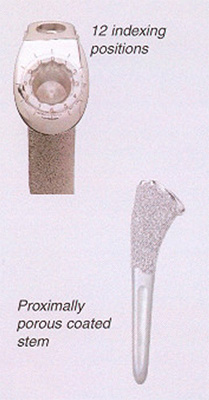

Patented Star shaped indexing mechanism with 12 indexing positions in conjunction with



6 necks and 5 head neck lengths generate 360 offset, anteversion and leg length configurations

Modular necks available in 32mm, 35mm, and 38mm lengths, each length offered in both 8 and 12 degree angles

Dual morse type tapers lock necks into place

Specifically designed for cemented fixation

The teardrop configuration increases surface area for a stronger cement bone attachment

Polished bullet distal tip and collar

Manufactured from CoCr with a proven history of high fatigue strength, outstanding biocompatibility and superior resistance to corrosion

Available in 6 sizes which can be used for both left and right hip replacements











R120PC Features and Benefits

Patented Star shaped indexing mechanism with 12 indexing positions in conjunction with

6 necks and 5 head neck lengths generate 360 offset, anteversion and leg length configurations

Modular necks available in 32mm, 35mm, and 38mm lengths, each length offered in both 8 and 12 degree angles

Dual morse type tapers lock necks into place

45% proximally porous coated stem with a fluted distal portion

Distal fluting increases rotational stability

Unique collar allows for immediate and intimate contact with cortical bone

Available in 6 sizes which can be used for both left and right hip replacements
